Molex 43045 Micro Fit 3.0mm Pitch Wafer Connector Dual Row Header Connector

Product Categories

Shenzhen Shinelinkconn Technology Co.,Ltd.

Contact Now

Molex 43045 Micro Fit 3.0mm Pitch Wafer Connector Dual Row Header Connector

Certification : ISO9001, ISO14001, IATF16949

Place of Origin : China

MOQ : 1000 pcs

Supply Ability : 20k daily capacity

Delivery Time : 2 weeks

Packaging Details : tray, tube

Plastic housing : PA66

Contact material : brass, phosphor bronze

Current rated : 5A

Insulation Resistance : 1000MΩ Min

Contact Resistance : 10MΩ Max

Voltage Rating : 250V AC/DC

Contact Now

Molex 43045 Micro Fit 3.0mm pitch Dual Row Header Connector single row PA66 striaght right angled

Technical characteristics:

Current rating: 5.0A AC/DC
Voltage rating: 250V AC/DC
Temperature range: -25C~+85C
Contact resistance: 10mΩ Max
Insulation resistance: 1000mΩ Min
Withstanding voltage: 1500V AC/minute

Wire range: AWG#20-24

Item	Part No.	Material	Poles	QTY
Wafer	C3030WV/WR(X)-(2)NP	Nylon66 UL94V-0	02~08	1K PCS / Bag
Housing	C3030HM(A)HF-(2)NP	Nylon66 UL94V-0	02~08	1K PCS / Bag
Terminal	C3030TW/TF-P	Phosphor Bronze		10KPCS / Reel

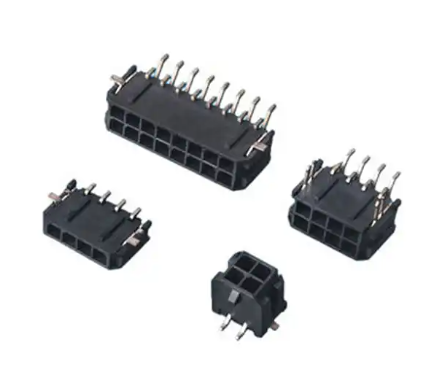

Molex 43045 Micro Fit 3.0mm Pitch Wafer Connector Dual Row Header Connector
